Gig Performer 4.x User Manual

Navigation: Built-in Plugins

From Rackspaces

Scroll Prev Top Next More

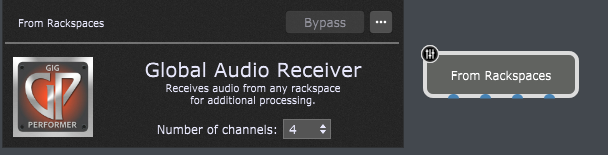

The From Rackspaces block is used to receive audio signals from any rackspace to the Global rackspace for additional processing. By default, this plugin provides four output pins:

From-Rackspaces

Double-clicking this plugin opens its editor window where the number of channels can be selected. You can select up to 64 channels for this plugin.

Important note: changing the number of channels will update all the global plugin blocks in all rackspaces. Affected plugins are:

- To Global Rackspace
- From Global Rackspace
- From Rackspaces
- To Rackspaces

See more information on how to connect the From Rackspaces plugin in the Global Rackspace chapter.

From Rackspaces parameters

Apart from the common parameter Open/Close Plugin Editor, the From Rackspaces plugin provides no other parameters.
