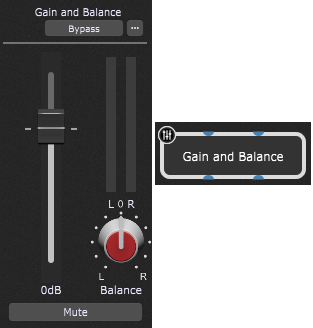

This plugin provides stereo audio input pins and stereo audio output pins:
It allows the gain and Left/Right balance of a stereo audio signal to be adjusted. Clicking on the Mute button or setting the Volume slider to 0 causes the plugin to be muted (not bypassed). Click here for more information on the difference between muting and bypassing a plugin.
Gain and Balance Control parameters
Besides the common parameters Bypass Plugin and Open/Close Plugin Editor, the following parameters are provided for the Gain and Balance Control plugin:
•Gain - allows you to control the gain.
•Balance - allows you to control balance (left-right).
•Channel # Magnitude - magnitude parameters are used for level metering. Metering can be very helpful to verify proper gain structure and ensure that a signal is not being overloaded and distorted.
•Muted - mutes or unmutes this plugin block.
