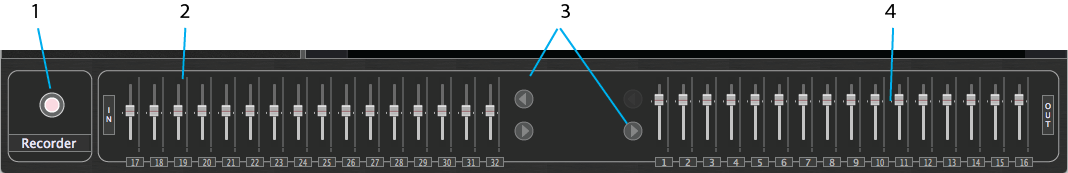

1.Recorder button – Click this to open the Recording Options dialog.
2.Interface input levels –A set of meters and sliders that allow you to view and adjust the levels of your audio interface’s various inputs. Flickering here indicates the presence of input signal. Double-click a fader to set it to 0 dB.
3. Next/Previous channel group buttons –Gig Performer displays up to 16 input or output interface channels at a time. If your interface has more than 16 I/O connections, the remaining inputs and outputs are accessed by clicking the Next or Previous button to scroll the display.
4.Interface output levels – A set of meters and sliders that allow you to view and adjust the levels of your audio interface’s various outputs. Double-click a fader to set it to 0 dB.
