Click the associated button or use the displayed key shortcut to execute the alignment or distribution function on selected widgets.
Align top (t)– Align the tops of the selected widgets.
Align bottom (b)- Align the bottoms of the selected widgets.
Align left (l) - Align the left sides of the selected widgets.
Align right (r) - Align the right sides of the selected widgets.

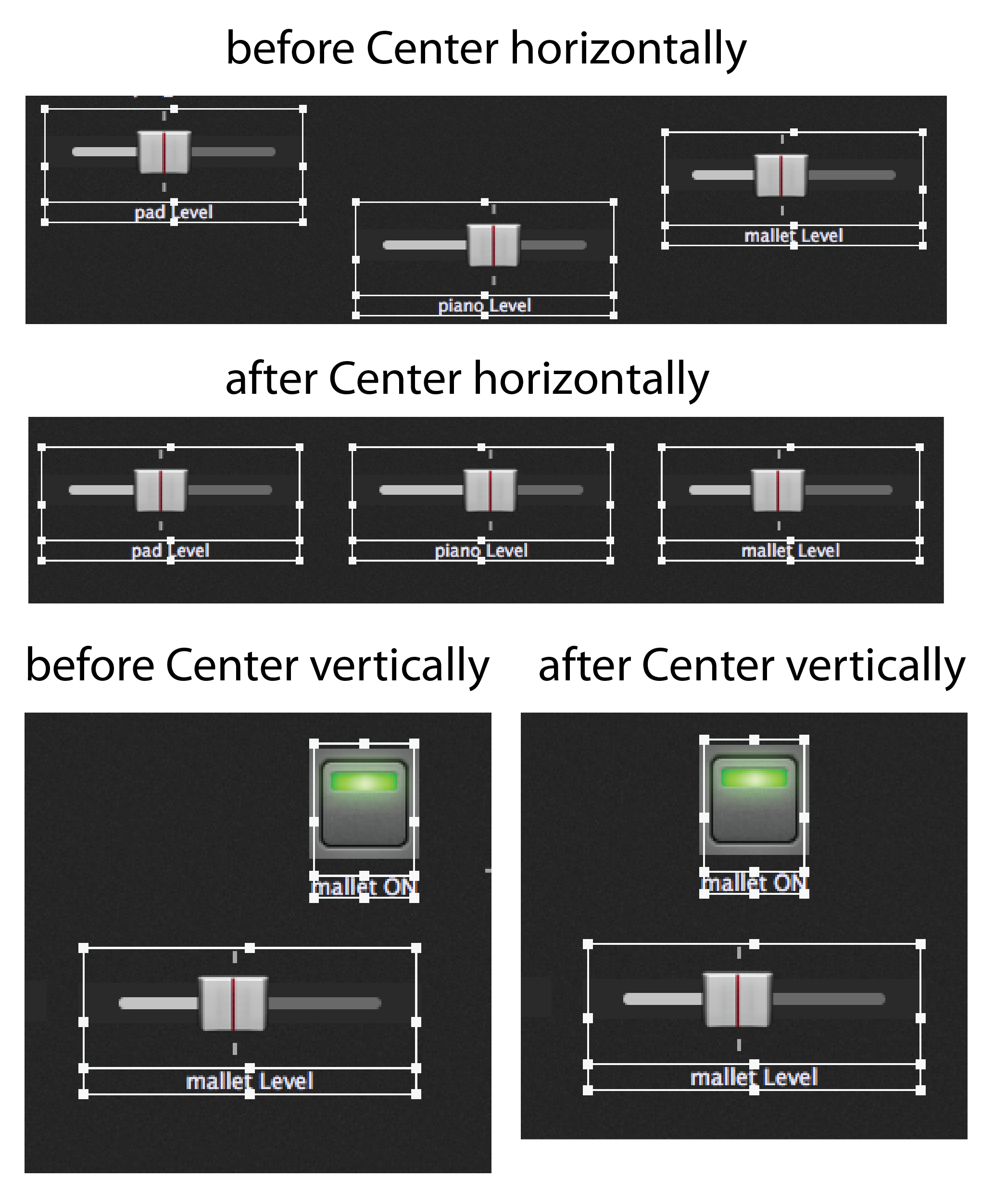

Center horizontally - Aligns selected widgets so that all are lined up on the X axis at the same value of Y.
Center vertically - Aligns selected widgets so that all are lined up on the Y axis at the same value of X.
Distribute horizontally (d)– Selected objects are moved to have even horizontal spacing between them.
Distribute vertically (D)– Selected objects are moved to have even vertical spacing between them.
Make same size (=) – This button makes all selected widgets the same size as the largest one of them.
Make captions same size – This button changes the size of the caption text areas for all selected widgets to match the one with the largest text area.
