Gig Performer 3.x User Manual

GIGPER~1_img279

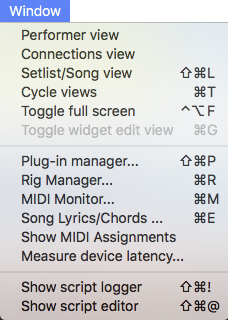

Performer viewSwitch to Performer View.

Connections viewSwitch to Connections View.

Setlist/Song viewSwitch to Setlist/Songs View.

Cycle views – Toggles between Performer and Connections views

Toggle full screenSwitches the display between full screen and a window.

Toggle widget edit view –Takes Gig Performer in and out of Edit mode.

Plug-in manager...Opens the Plugin Manager

Rig manager… – Opens the Rig Manager

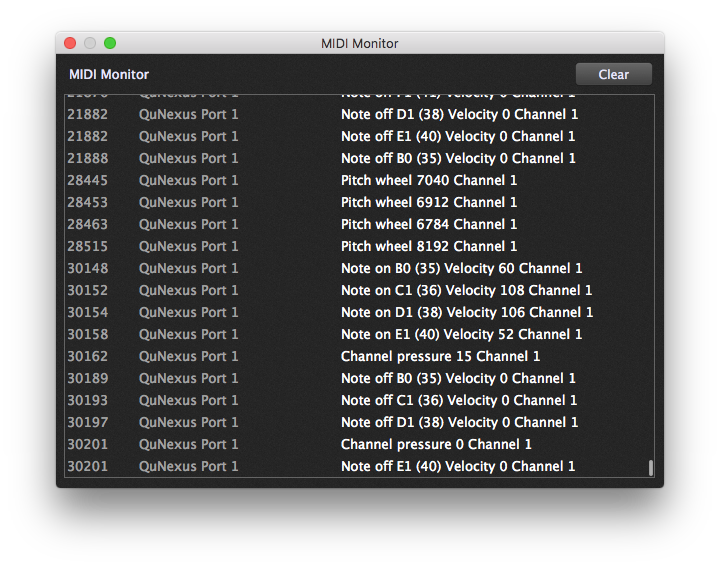

MIDI Monitor– Opens the MIDI Monitor window (shown below). This is similar to the supplied MIDI Monitor plugin, except that it shows all MIDI messages being received into Gig Performer itself except MIDI clock and system exclusive (SYSEX) messages.

GIGPER~1_img280

Song Lyrics/Chords… - This command opens the Song Lyrics/Chords Editor.

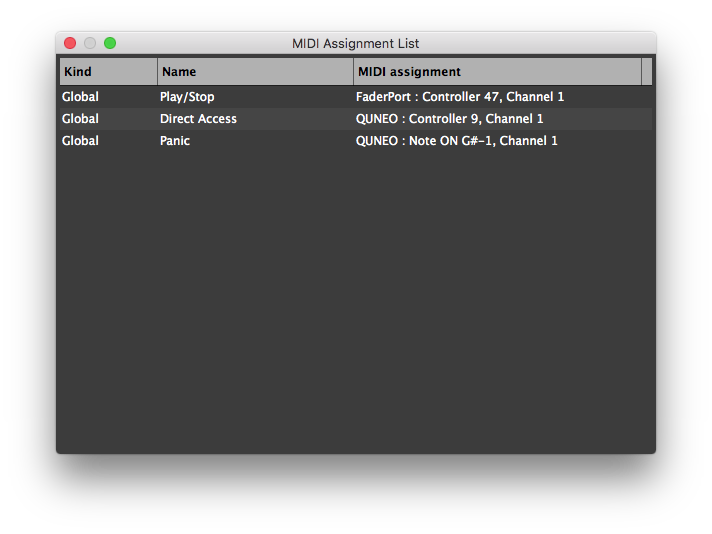

Show MIDI Assignments – This command opens the MIDI Assignment List window. This window displays the information from the Global MIDI Assignments section of the Global MIDI preferences.

GIGPER~1_img281

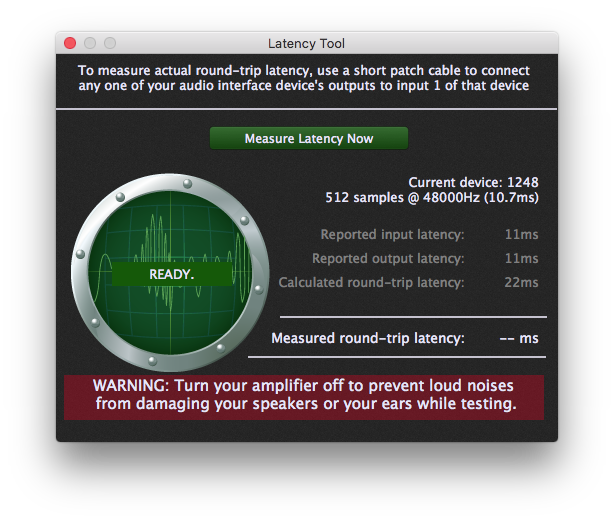

Measure device latency – This command allows you to measure the latency through your computer system and interface.

GIGPER~1_img282

To measure:

1.Mute your speakers or turn them all the way down.

2.Connect a physical patch cable from any output from your audio interface to input 1 of the interface.

3.Click the Measure Latency Now button.

4.The result will appear in the Measured round-trip latency display.

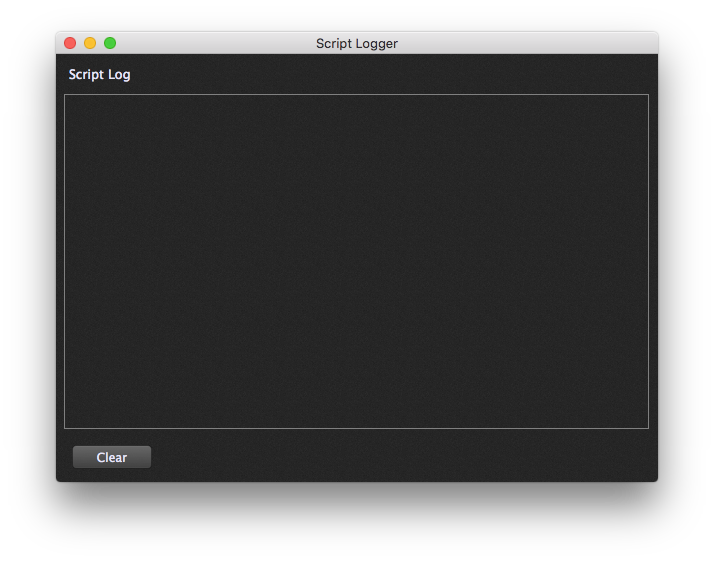

Show Script Logger – This command opens the Script Logger window for help in developing GP Scripts. For more information on GP Script, see Going Above and Beyond: GP Script.

GIGPER~1_img283

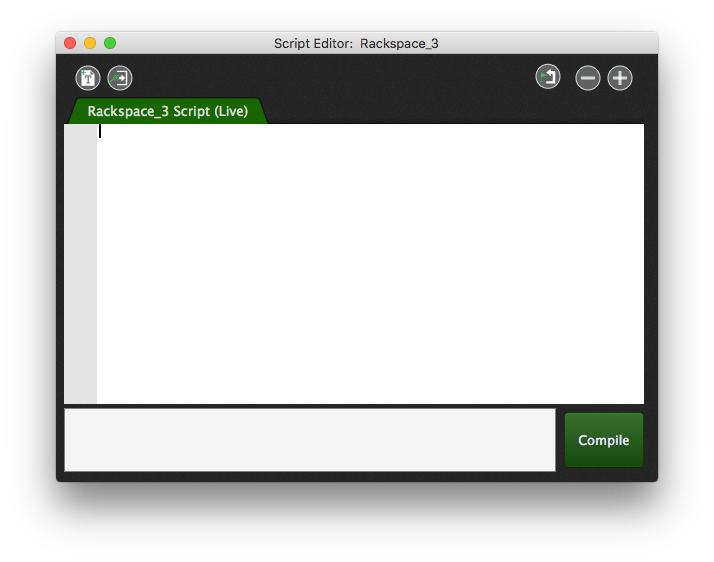

Show Script Editor

This command opens the Script Editor window for use in developing GP Scripts. For more information on GP Script, see Going Above and Beyond: GP Script.

GIGPER~1_img284
